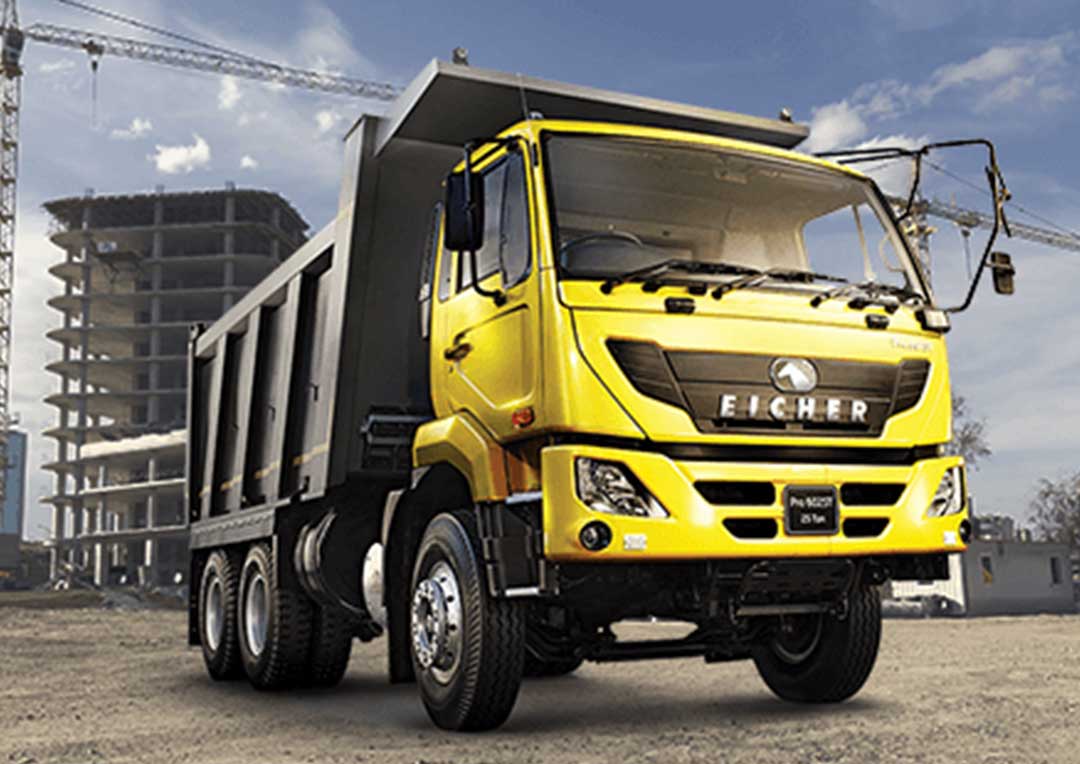

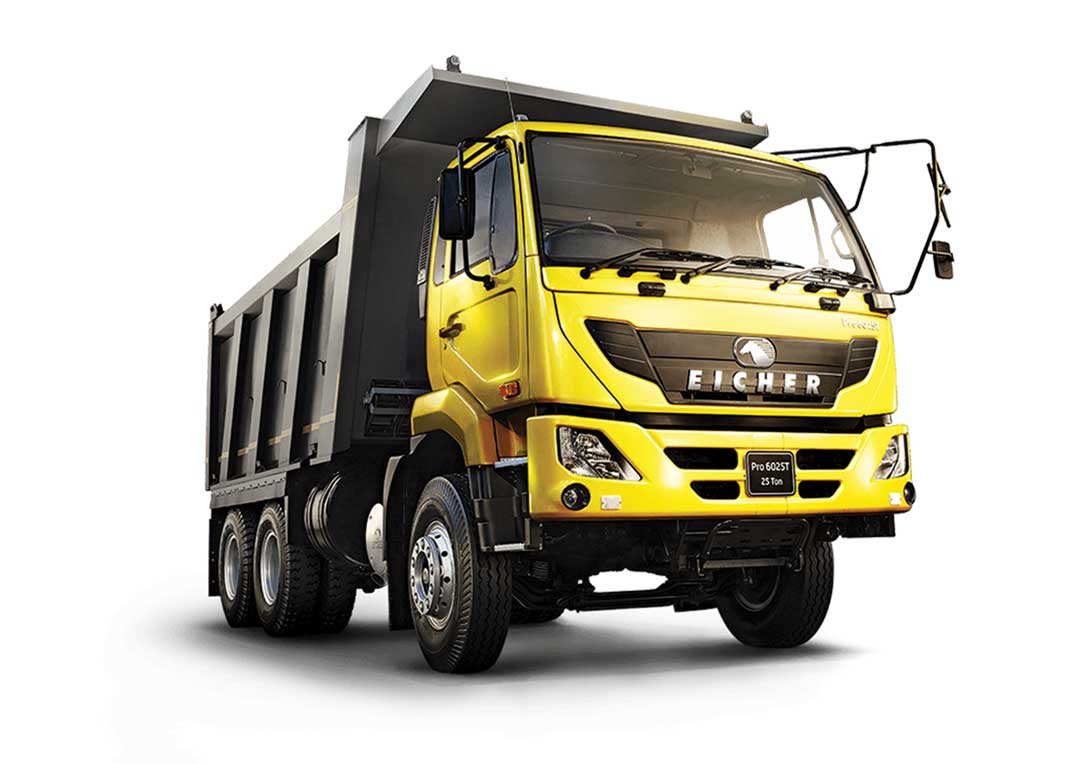

Eicher Pro 6025T – Designed for Heavy Loads
With its impressive payload capacity and advanced suspension system, the Eicher Pro 6025T ensures stability and performance even under the heaviest loads. It’s the ideal solution for demanding industries.
The Eicher Pro Extra Heavy-Duty range of tippers is engineered to handle the toughest demands in the construction and mining industries. With GVM options between 16 and 25 tons and body capacities ranging from 6 to 10 cubic metres, these tippers are powered by Volvo Group’s advanced Engine Management System (EMS 3.0), ensuring robust performance and efficiency across various applications.
Key Features
- High Torque Across Wide RPM: Ensures optimal power delivery for heavy-duty operations.
- Composite Materials: Higher strength and lower weight for enhanced durability and efficiency.
- Intelligent Driver Information System (IDIS): Real-time updates on performance, fuel efficiency, and safety.
- Advanced Onboard Diagnostics: Simplifies troubleshooting and maintenance.
- Ergonomic Cabin Design: Spacious interiors equipped with state-of-the-art features for driver comfort.

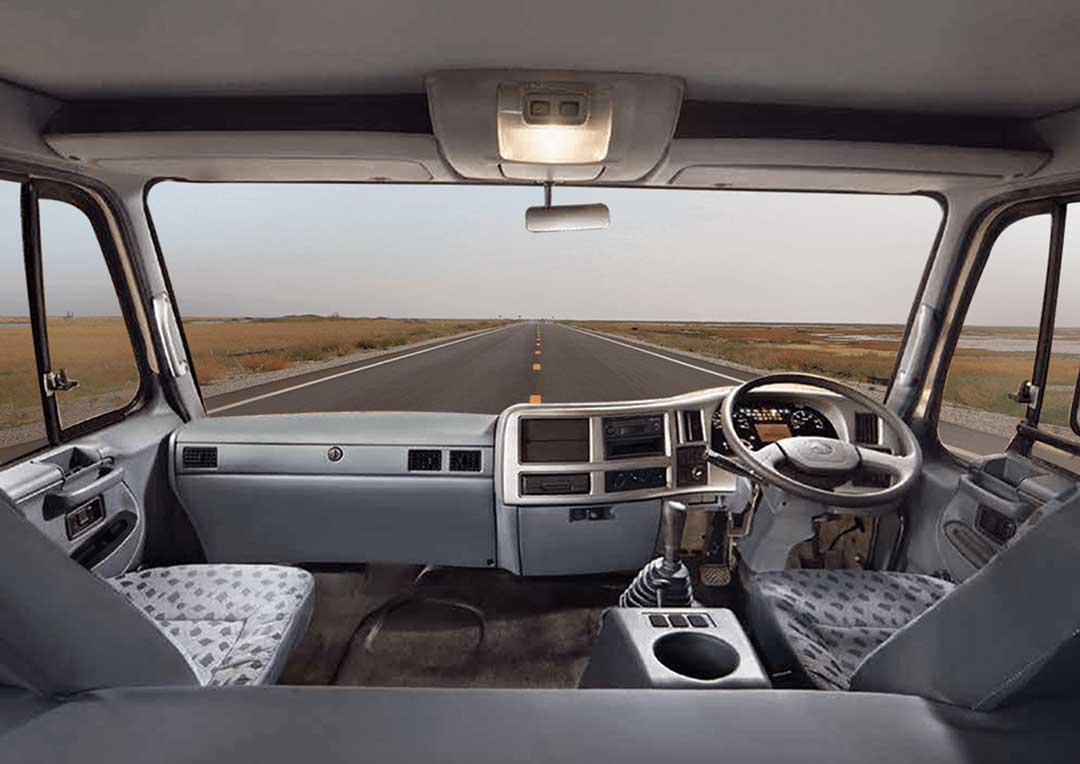

Comfort and Technology in the Eicher Pro 6025T
| PARAMETERS | Value |
|---|---|
| GVM | 25700 |
| FAW (laden) | 7700 |
| RAW (laden) | 18000 |
| Tier Mass - w/o load body | 8050 |
| Model | VEDX8, 6 Cylinder 4 Valve per |
| cylinder, turbo charged, | |
| intercooled diesel, common rail | |
| Capacity | 7700 cc |
| Max Power | 250 Hp @ 2200 rpm |
| Max Torque | 950 Nm @ 1100-1850 rpm |
| Emission | Euro III |
| Gear Box | ZF 1110TD |
| (9 Forward 1 Reverse) | |
| Gear Shift Linkage | Single Rod GSL |
| Clutch | 430 mm Plate Dia, spring loaded |
| pull type with clutch booster | |
| Rear Axle Ratio | 5.286 |
| Type | Ladder type joggle frame |
| Section | 285 X 76 X 7 |
| Type | Power steering |
| TCD (M) | 14.5 |
| Front Suspension | Parabolic leaf springs with |
| hydraulic type double acting | |
| telescopic front shock absorber | |
| Rear Suspension | Bogie suspension |
| Tyre Size | Tubeless radial 315/80R22.5-16PR |
| Wheel Rim size | 9X22.5 |
| Model | New Pro 6025T HVAC |
| CAB with IDIS | |
| Brake type | Dual Circuit, Full Air |
| Parking brake type | Pneumatic Control, hand operated |
| (Inbuilt with Rear Spring Brake Actuator) | |
| ABS | Standard |
| Battery | 24V,150AH |
| Size | 220 litres |
| Max Speed (kmph) | 86 |
| Gradeability | 49% |
| Wheel Base | 4000 |
| FOH | 1420 |
| ROH | 815 |
| Cabin Width | 2300 |
| Ground Clearance | 256 |
