Unmatched Performance with the Powerstar V3 2646S AMT 6×4
Equipped with a high-powered engine and cutting-edge technology, the V3 2646S AMT 6×4 is built to handle heavy-duty tasks with ease, ensuring reliable performance across diverse terrains.
Engine
Make: Weichai Euro 3 Turbo charged Intercooled
Model Confirguration: WP12.460N
Max Power – Kw @ r/min: 338/1900
Max Power – N.m @ r/min: 2110/1000~1400
HP: 460
Cylinder: 6 inline
Water Cooled: Yes
Direct Injection: Yes
Engine Driven P.T.O: No
Displacement (I): 11,596
Compression Ratio: 17,01
Transmission
Make/Model: Fast Gear 16JZSD240A AMT
No Gears: 16
Synchromesh or Constant Mesh: Synchromesh
Transfer Box: NA
P.T.O: No
Retarder: FHB320B
Brakes
Service: Dual circuit air brakes
Emergency / Parking: Spring potential brake
Auxiliary: ABS & EVB
Warranty
Warranty: New Vehicle 3 years / 400 000 km (SA Only)
Advanced Features for Superior Control – V3 2646S AMT 6×4
Drive Home the Powerstar V3 2646S AMT 6×4 with Commercial Motors
STANDARD TYRE EQUPIMENT
Size and ply rating: (F) – 385/65R22.5
(R)-315/80R22.5 incl spare wheel
Aluminium Rims
FRONT AXLE
Type: VR4/01C-7.5 Disc Brake
Suspension: Three leaf spring, hydraulic shock absorber, transverse stabilizer
MIDDLE AND / OR REAR AXLE
Type: HD6/01CG & HL6/01C-13 Hypoid Disc Brake
Beiben440
Suspension: Stabilizer suspension, four leaf spring
ELECTRICAL EQUIPMENT
Alternator: 80Amp
Starter Motor: 5.58kW
Batteries: 2 x 12V – 180AH
PERFORMANCE DATA
Gradeability: @ GVM 22% @ GVM
Max Geared Road Speed: 107 km/h (Limited to 80km/h)
Final Drive Ratio: 4,11
CLUTCH
Make / Type / Size: GFX 430mm single
Operation: Single dry frictional disc, diaphragm spring, pulling type
RATIO
Crawler
1st: 14,03
2nd: 11,64
3rd: 9,6
4th: 7,97
5th: 6,64
6th: 5,51
7th: 4,55
8th: 3,78
9th: 3,08
10th: 2,56
11th: 2,11
12th: 1,75
13th: 1,46
14th: 1,21
15th: 1
16th: 0,83
Reverse L: 16,3
Reverse H: 13,42
DIMENSIONS
Overall Length (OL): 6 905
Overall Width (OW): 2500
Overall Height (OH): 3 475
Front Overhang (FOH): 1 515
Rear Overhang (ROH): 703
Wheel Base (WB): 3 975
Bumper to Back of Cab (BBC): 2 625
Cab to rear axle / unit (CA): 2 905
Turning Radius (TR): 9 000
Fuel Tank Capacity (FTC): 700 LTR Aluminium
MASS INFORMATION
Manufacturers Gross Vehicle Mass (GVM): 26 000
Manufacturers Gross Combination Mass (GCM): 65 000
Manufacturers Front Axle Mass (GA): 7 500
Manufacturers Rear Axle Mass (GAU): 26 000
Permissible Maximum Vehicle Mass (V): 25 500
Permissible Maximum Front Axle Mass (AF): 7 500
Permissible Maximum Rear Axle Mass (AR): 18 000
Unladen Front Axle Mass (UF): 4 750
Unladen Rear Axle Mass (UR): 3 990
Total Unladen Mass (UT): 8 740
Permissible Max Drawing Vehicle Mass (D/T): 65 000

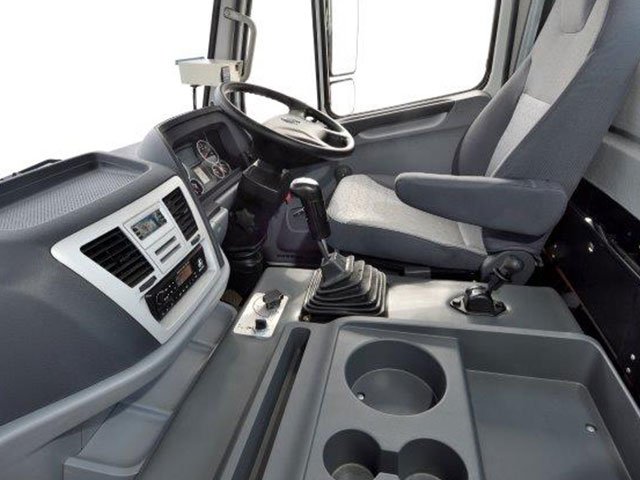

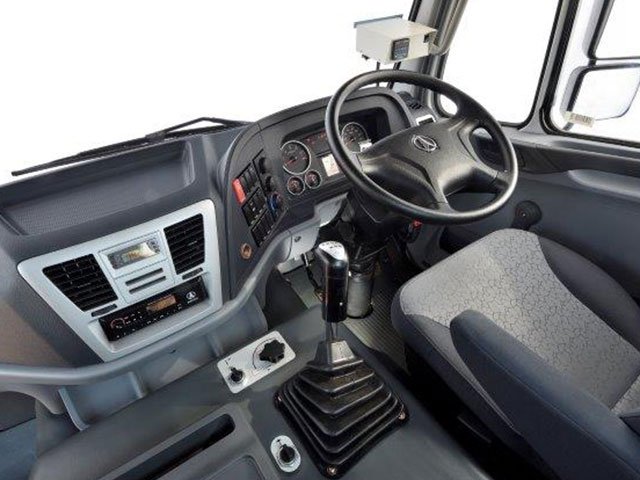

CAB
Sleeper Cab: Hydraulic Tiltable Cab
